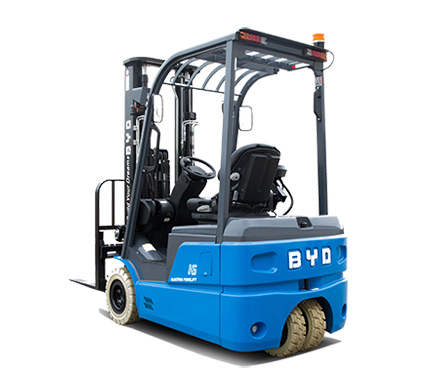

The BYD ECB16 1.6 Ton Comfort three-wheel forklift truck has the same characteristics as the Basic model, in addition to:
Other features of the BYD ECB16 three wheel electric forklift truck:
BYD ECB16 model battery charger combinations:

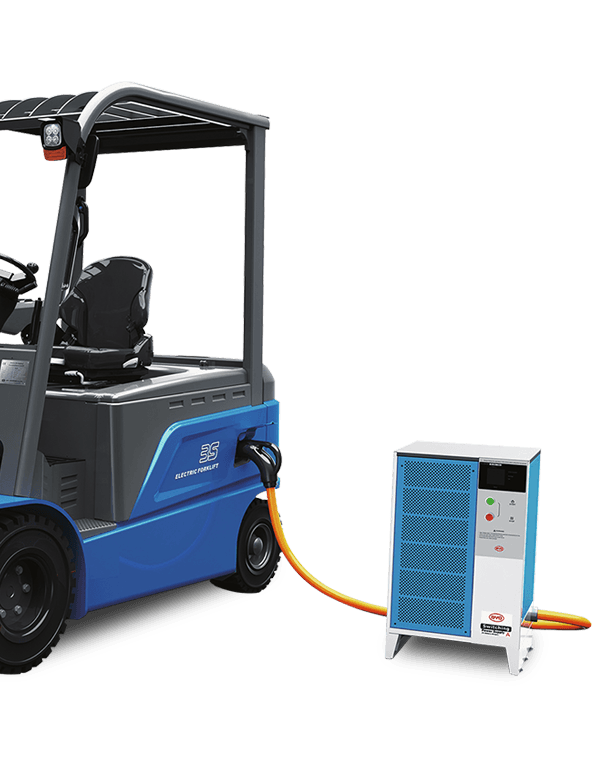

The BYD lithium iron phosphate battery technology allows you to charge it 100% in just over 1 hour for direct use without waiting for it to cool down, as is the case with conventional batteries.
(BYD electric forklift trucks have several chargers according to the needs of each user.)

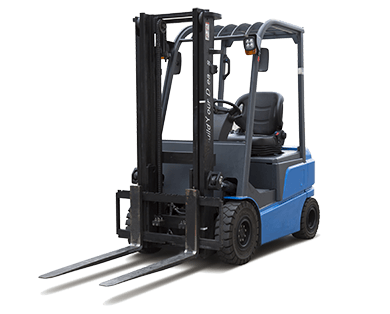

Model: ECB16D
Battery: Iron and lithium phosphate - Battery 80V / 270 Ah (21.6 kWh)
Loading Capacity: 1.6 Ton
Valve: 4 way
Additional Features:
This model offers greater driving stability along with maximum maneuverability. Integrated side shift lever. TFT screen Speed ​​reduction in curves. Operator presence sensor. Mechanical lever (basic model). Regenerative braking system Disc brake immersed in oil.
BYD ECB16D 4-wheel counterbalanced trucks offer a compact design, greater driving stability and maximum maneuverability. With dual AC technology, all BYD forklifts offer industry-leading performance.
BYD trucks are powered by lithium iron phosphate technology with state-of-the-art battery management systems and with the longest battery warranty in the industry, 8 years or 10,000 hours, peace of mind is assured.
With recharge times as low as 65 minutes, BYD forklifts can operate in several shifts without the need to change or replace the battery.

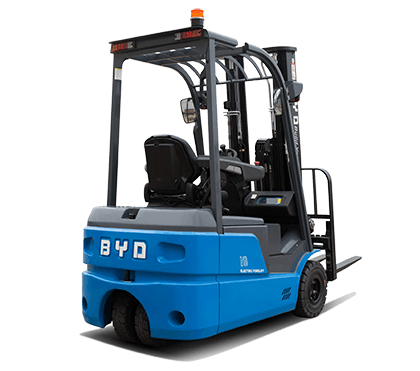

Technical description of the BYD ECB18 Comfort model
The BYD ECB18 1.8 Ton Comfort three-wheel forklift truck has the same characteristics as the Standard model, in addition to:
Other features of the BYD ECB18 three wheel electric forklift truck:
BYD ECB18 model battery charger combinations:
The BYD lithium iron phosphate battery technology allows you to charge it 100% in just over 1 hour for direct use without waiting for it to cool down, as is the case with conventional batteries.
BYD electric forklift trucks have several chargers according to the needs of each user.

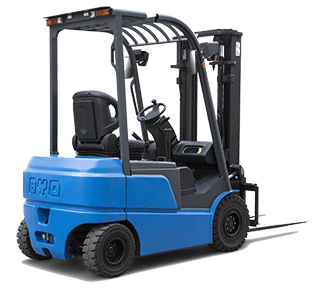

Model: ECB18D
Battery: Iron and lithium phosphate - Battery 80V / 270 Ah (21.6 kWh)
Loading Capacity: 1.8 Ton
Valve: 4 way
Charger: 80V 100A
Additional Features:
Meet the BYD ECB18D counterbalanced forklift truck.
This model offers greater driving stability along with maximum maneuverability. Integrated side shift lever. TFT screen Speed reduction in curves. Operator presence sensor. Mechanical lever (basic model). Regenerative braking system Disc brake immersed in oil.
BYD ECB18D 4-wheel counterbalanced forklift trucks offer a compact design, greater driving stability and maximum maneuverability. With dual AC technology, all BYD forklifts offer industry-leading performance.
BYD trucks are powered by lithium iron phosphate technology with state-of-the-art battery management systems and with the longest battery warranty in the industry, 8 years or 10,000 hours. Peace of mind is assured.
With recharge times as low as 65 minutes, BYD forklifts can operate in several shifts without the need to change or replace the battery.

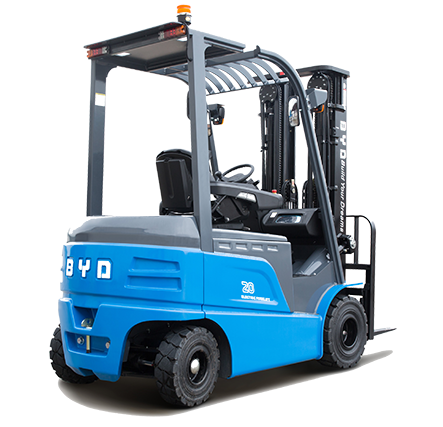

Model: ECB20
Loading Capacity: 2 Ton
Mast: Triplex with maximum lifting height of 4750mm
Battery: Technology: Lithium iron phosphate 80V 16 kwh to 32 kwh
Motor: Two three-phase lifting motors
Charger: Side access (no need to open battery compartment cover)
Hydraulic Valve: Standard 4 way
The BYD ECB20 2 Ton Comfort three-wheel forklift truck has the same characteristics as the Basic model, in addition to:
Other features of the BYD ECB20 model:
BYD ECB20 model battery charger combinations:
The BYD lithium iron phosphate battery technology allows you to charge it 100% in just over 2 hours for direct use without waiting for it to cool down, as is the case with conventional batteries.
BYD electric forklift trucks have several chargers according to the needs of each user.

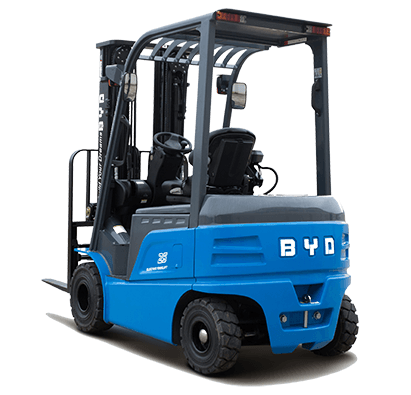

Model: ECB25
Loading Capacity: 2.5 Ton
Mast: Triplex with maximum lifting height of 4750 mm
Battery Technology: Lithium iron phosphate 80V 16 kwh to 32 kwh
Charger: Side access (no need to open battery compartment cover)
Lateral Shift: Integrated
Motor: Two three-phase lifting motors
Hydraulic Valve: Standard 4 way
Electric 2.5 Ton counterbalanced ECB20 forklift truck:
Meet the 2.5 Ton BYD ECB25 electric forklift truck This BYD Forklift model has an ergonomic design to help reduce driver fatigue and improve productivity. Also, thanks to its ultra-fast charge and the use of a single battery requiring no maintenance, costs per operation can be significantly reduced.
Technical description of the BYD ECB25 Comfort model:
Other features of the BYD ECB25 electric forklift truck:
BYD model battery charger combinations:
The BYD lithium iron phosphate battery technology allows you to charge it 100% in just over 2 hours for direct use without waiting for it to cool down, as is the case with conventional batteries.
BYD electric forklift trucks have several chargers according to the needs of each user.

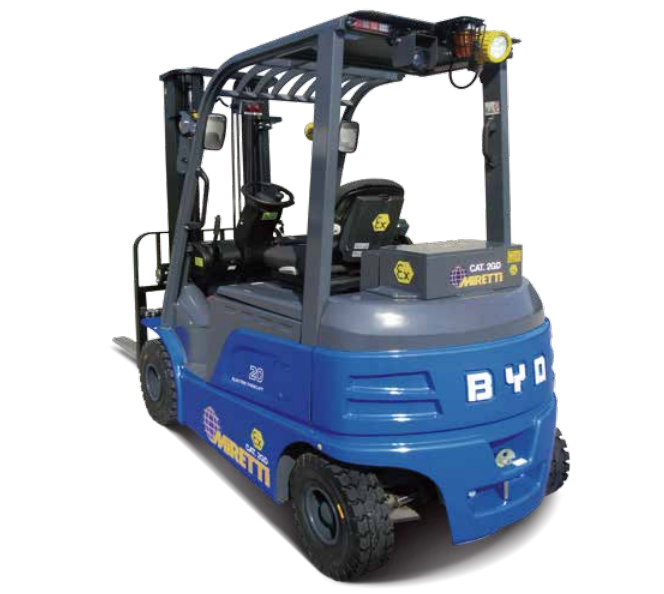

Discover the BYD ECB ATEX electric forklift truck. A model with different types of load capacity as needed for work (2, 2.5 and 2.7 tons of load) specially created for use in explosive environments.
The BYD ECB ATEX 2, 2.5 and 2.7 Ton truck with special equipment has the same characteristics as the Standard model, in addition to:
Other features of the BYD ECB ATEX electric forklift truck.
Model: ECB27
Loading Capacity: 2.7 Ton
Mast: Triplex with maximum lifting height of 4750 mm
Battery Technology: Lithium iron phosphate 80V 16 kwh to 32 kwh
Charger: Side access (no need to open battery compartment cover)
Lateral Shift: Integrated
Motor: Two three-phase lifting motors
Hydraulic Valve: Standard 4 way
Electric 2.7 Ton counterbalanced ECB27 forklift truck:
The BYD ECB27 lithium truck of 2.7 Ton. This electric model of BYD has an ultra fast charge for its lithium iron phosphate battery. The Asian firm’s best technology summed up in a battery that in addition to being safe and efficient, reduces the costs of your daily operation.
The BYD ECB27 2.7 Ton Comfort forklift truck has the same characteristics as the Basic model, in addition to:
Other features of the BYD ECB27 electric forklift truck:
BYD model battery charger combinations:
The BYD lithium iron phosphate battery technology allows you to charge it 100% in just over 2 hours for direct use without waiting for it to cool down, as is the case with conventional batteries.
BYD electric forklift trucks have several chargers according to the needs of each user.

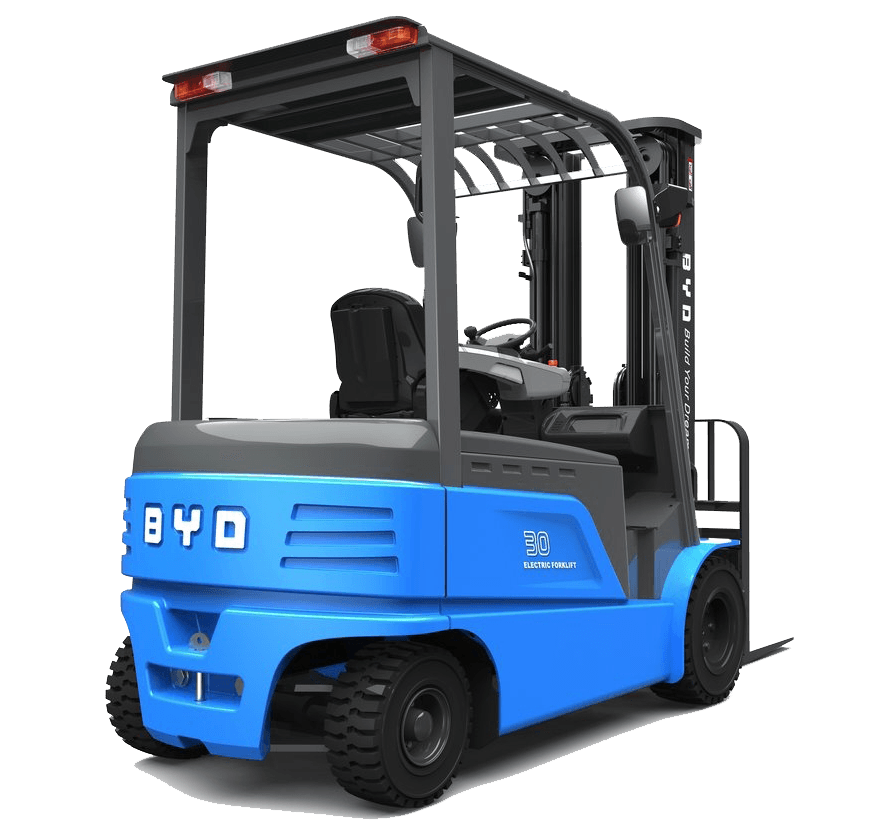

Model: ECB30
Loading Capacity: 3 Ton
Mast: Triplex with maximum lifting height of 4750 mm
Battery Technology: Lithium Iron Phosphate 80V 16 kwh to 32 kwh
Charger: Side access (no need to open battery compartment cover)
Lateral Shift: Integrated
Motor: Two three-phase lifting motors
Hydraulic Valve: Standard 4 way
The BYD ECB30 is an electric truck with a maximum workload of 3 Ton designed to improve the day-to-day work of its operators. An ergonomic machine with lithium iron phosphate technology which is the one which differentiates BYD Forklift because it is more efficient, safer, cleaner, and has a longer lifespan than other trucks.
The BYD ECB30 3 Ton Comfort forklift truck has the same characteristics as the Basic model, in addition to:
Other features of the BYD ECB30 electric forklift truck:
BYD model battery charger combinations:
The BYD lithium iron phosphate battery technology allows you to charge it 100% in just over 2 hours for direct use without waiting for it to cool down, as is the case with conventional batteries.
BYD electric forklift trucks have several chargers according to the needs of each user.

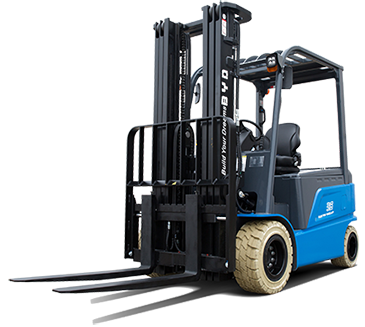

Model: ECB35
Loading Capacity: 3.5 Ton
Mast: Triplex with maximum lifting height of 4750 mm
Battery Technology: Lithium iron phosphate 80V 32 kwh to 48 kwh
Charger: Side access (no need to open battery compartment cover)
Lateral Shift: Integrated
Motor: Two three-phase lifting motors
Hydraulic Valve: Standard 4 way
3.5 Ton counterbalanced ECB35 electric forklift
Meet the 3.5 Ton BYD ECB35 electric forklift truck This counterbalanced BYD Forklift offers a thoroughly ergonomic design which reduces driver fatigue and enhances productivity. Also, thanks to its ultra-fast charge and the use of a single battery requiring no maintenance, costs per operation can be significantly reduced.
The BYD ECB35 3.5 Ton Comfort forklift truck has the same characteristics as the Basic model, in addition to:
Other features of the BYD ECB35 electric forklift truck:
BATTERY CHARGING COMBINATIONS:
The BYD lithium iron phosphate battery technology allows you to charge it 100% in just over 2 hours for direct use without waiting for it to cool down, as is the case with conventional batteries.
BYD electric forklift trucks have several chargers according to the needs of each user.

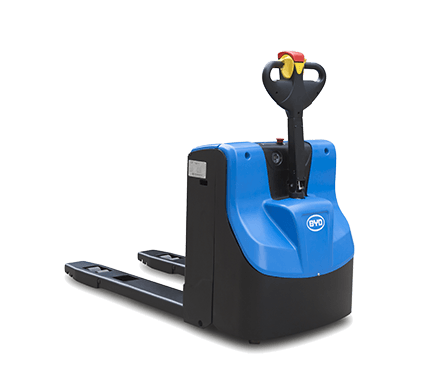

Model: PTW20S
Battery Technology: Lithium iron phosphate 24V / 110 Ah
Loading Capacity: 2 ton
Speed: 6 km/h
Charger: 24V 30A
The Lithium Iron Phosphate battery can be fully recharged in just 1.1 hours and be used immediately.
Shock-absorbing and antiskid platform elivers stable and comfortable standing for operator.
Electric Power Steering allows the operator to maneuver the pallet truck with great ease and reduces fatigue.
Automatic shut down when handle is released or in vertical and horizontal position.
Lithium Iron Phosphate (Fe)
Maximum Safety:
The commitment to day-to-day safety is one of BYD's maxims, meaning that the batteries on our electric forklift trucks have been TUV tested and present no risk of explosion or fire. No risk of explosion or fire, no flammable gases emissions, nor harm to the health of your employees.
Savings:
No battery changes, no maintenance, no distilled water or charger room, and with an energy consumption which is well below average.
Long Life:
As many bottle charges as necessary can be undertaken without affecting their lifespan of 22,000 charge cycles compared to 5,000 with conventional batteries.
Battery Technology
Extremely long life cycle:
The remaining capacity will be more than 70% after 15 years’ operation.

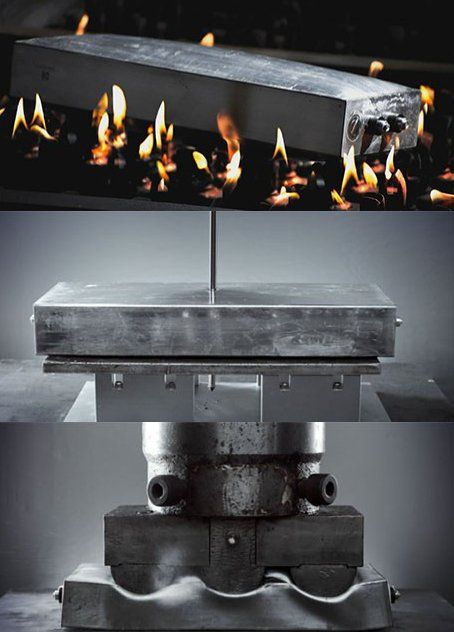

Extremely safe:
The BYD Fe battery does not emit flammable gases (hydrogen nor oxygen) as the other battery technologies do. As a result, explosions caused by gases are a physical impossibility.
Environmentally friendly:
The BYD Fe battery does not contain corrosive acid nor polluting heavy metals, as other technologies do, thus becoming the most environmentally friendly battery available.
Works well in extremely low temperatures:
Whether you work in cold climates or in refrigerated environments, the Fe battery will deliver more energy. As an example, at -40C, more than 60% of the energy stored is usable, which is not the case with the other technologies
The BYD battery revolution
The BYD Lithium Iron Phosphate (Fe) battery brings a revolution to the forklift industry, with the ultimate goal of providing a cheaper, cleaner and safer solution to the material handling industry.
Revolutionary cost-saving battery:
No more battery maintenance cost, no more spare battery cost, no more changing battery cost – a one-time investment that benefits your business from day one.
Revolutionary safe battery:
No more acid handling, no more flammable gases, no more manipulation of battery, no more battery maintenance – a choice to make your business environment and community a better place to work and live in.
Revolutionary long-life battery:
No more battery changing, no more purchases of new batteries – a wise investment that minimizes your operating costs once and for all.
BYD WARRANTY
WARRANTY PERIOD:
BYD Motors Inc. (“BYD”) warrants that each new truck manufactured and/or distributed by BYD shall be free, under normal use and with proper maintenance, from defects in material or workmanship (Full Coverage). The Warranty Period is detailed below.
10-WARRANTY PERIOD FOR BATTERY:
The lithium iron phosphate battery (FE battery) is warranted to charge and discharge normally and have a remaining capacity of 65% or greater by the end of ten (10) years or 20,000 hours, whichever comes first.
5-WARRANTY PERIOD FOR DRIVE AXLE:
The Traction Motors and Drive Axle (excluding wear items such as seals, lubricants and gaskets) are warranted for parts and labor for five (5) years or 10,000 hours, whichever comes first.
3-WARRANTY PERIOD FOR REMAINING COVERED COMPONENTS:
BYD will provide without charge new and genuine BYD parts, labor and service call to replace or repair any covered components furnished by BYD and found to be defective in material or workmanship, provided the truck has not exceeded 6,000 hours of use.
COMPONENTS COVERED:
BYD RESPONSIBILITIES:
NOTE: At any time during the repair process, BYD shall be entitled to repair an original part or component with a replacement part or component and the original part or component shall become BYD’s exclusive property.
BYD is not responsible for defects resulting from:
TRUCKS WITH KNOWN FAILED OR DEFECTIVE PARTS MUST BE IMMEDIATELY REMOVED FROM SERVICE.
CUSTOMER RESPONSIBILITES
The customer is responsible for:
WARRANTY LIMITATIONS / DISCLAIMERS:
The foregoing shall constitute the sole and exclusive remedy of any customer of a BYD truck and the sole and exclusive responsibility of BYD and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to any implied warranty of merchantability, or fitness for a particular purpose. BYD neither assumes nor authorizes any person to assume for it any other obligation or responsibility in connection with this BYD truck Warranty. In no event shall BYD be responsible for direct, indirect, special or consequential damages, or for any delay or any economic or commercial loss resulting from BYD’s performance or non-performance under this Warranty. This Warranty is expressly in lieu of all warranties, obligations or responsibilities of BYD dealers, or other BYD authorized source, expressed, implied or statutory.
Warranty coverage is not extended to repairs or parts and services required as a result of normal or accelerated wear and tear (i.e., brake shoes/pads, tires, light bulbs, battery connectors) and periodic maintenance which is performed in accordance with published schedules (i.e., electric motors brushes, contactor tips, fuses, load wheels).
A customer signed and dated Delivery Report and/or Transfer Ownership Report must be completed and returned as instructed in order to confirm date and/or truck location.
