Kalmar Ottawa: Terminal Tractors

Kalmar Ottawa not only invented the product but is the global leader in the terminal tractor business.

SERVICE

PARTS

RENTAL

SALES

Setting the Standard

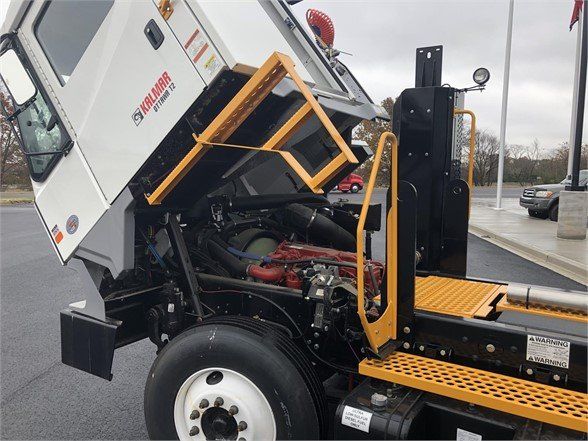

The Kalmar Ottawa T2 has set the bar even higher providing the optimal terminal tractor for your operation. All Kalmar Ottawa’s are built at the US manufacturing plant in Ottawa, Kansas. Along with being the original manufacturer of terminal tractors, Kalmar Ottawa was the first to offer machines with an automatic transmission, a rear door entry, integral air conditioning units, power cab tilt and ABS brake systems. Kalmar Ottawa terminal tractors were also the first on the market to receive DOT/EPA certification – a paramount classification for distribution and industrial customers whose operation entails shunting trailers between yards via public streets and roadways.

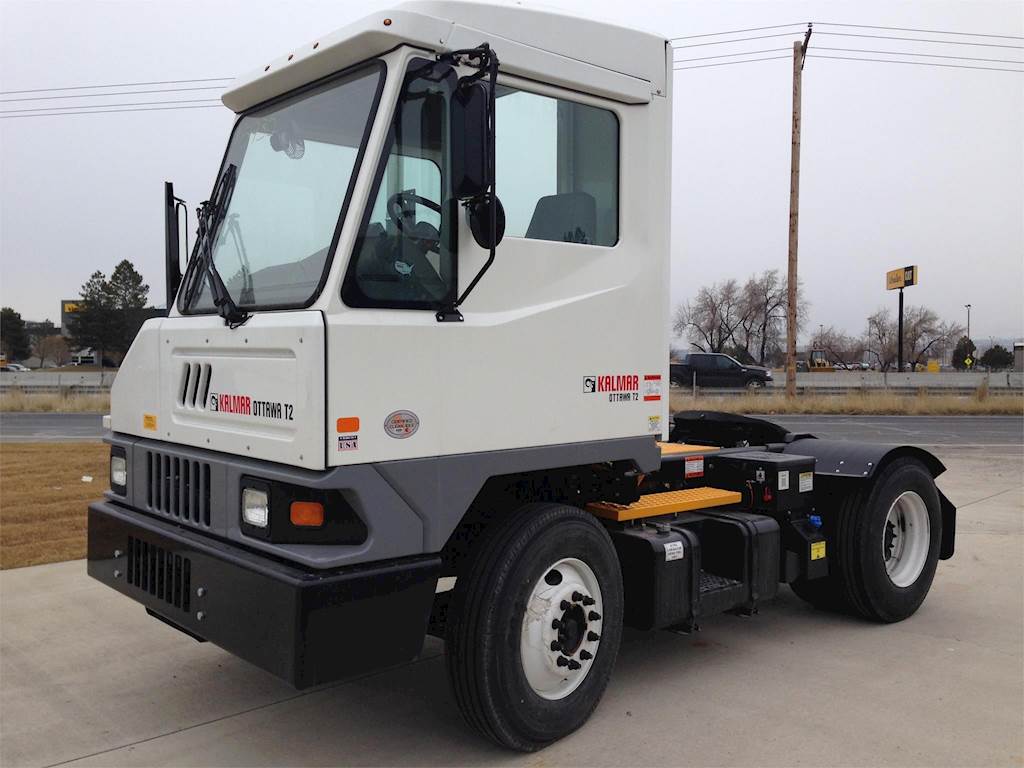

T2 4x2 Off-Road
Terminal Tractor

The T2 4X2 Off Road terminal tractor is designed to efficiently move trailers from spot to spot within a confined yard. Kalmar Ottawa’s has a track record of trusted durability, improved serviceability and driver comfort.

FEATURES:

Wheelbase:
116”
Frame / Chassis:
14”x4.25”x3.5” Steel 50,000 PSI 3/8” Formed C-Channel
Engine:
Cummins Tier 4 Final QSB6.7-164 HP @ 2300 RPM, 540 lb./ft. Torque @ 1500 RPM
Transmission:
Allison 3000RDS (6 Speed) Automatic Transmission with MaxiMizer Fuel Reduction System
Front Axle:
Meritor FF-961 12,000 lb. Rated
Rear Axle:
Meritor RS-24-160, 30,000 lb. Rated, 7.17:1 Ratio
Fifth Wheel:
Holland FW-35 Fifth Wheel with 70,000 lb. Plate Rating
Pneumatic:
18.7 CFM Wabco Compressor with (2) Reservoir Tanks, Total Capacity 4614 cu. in.

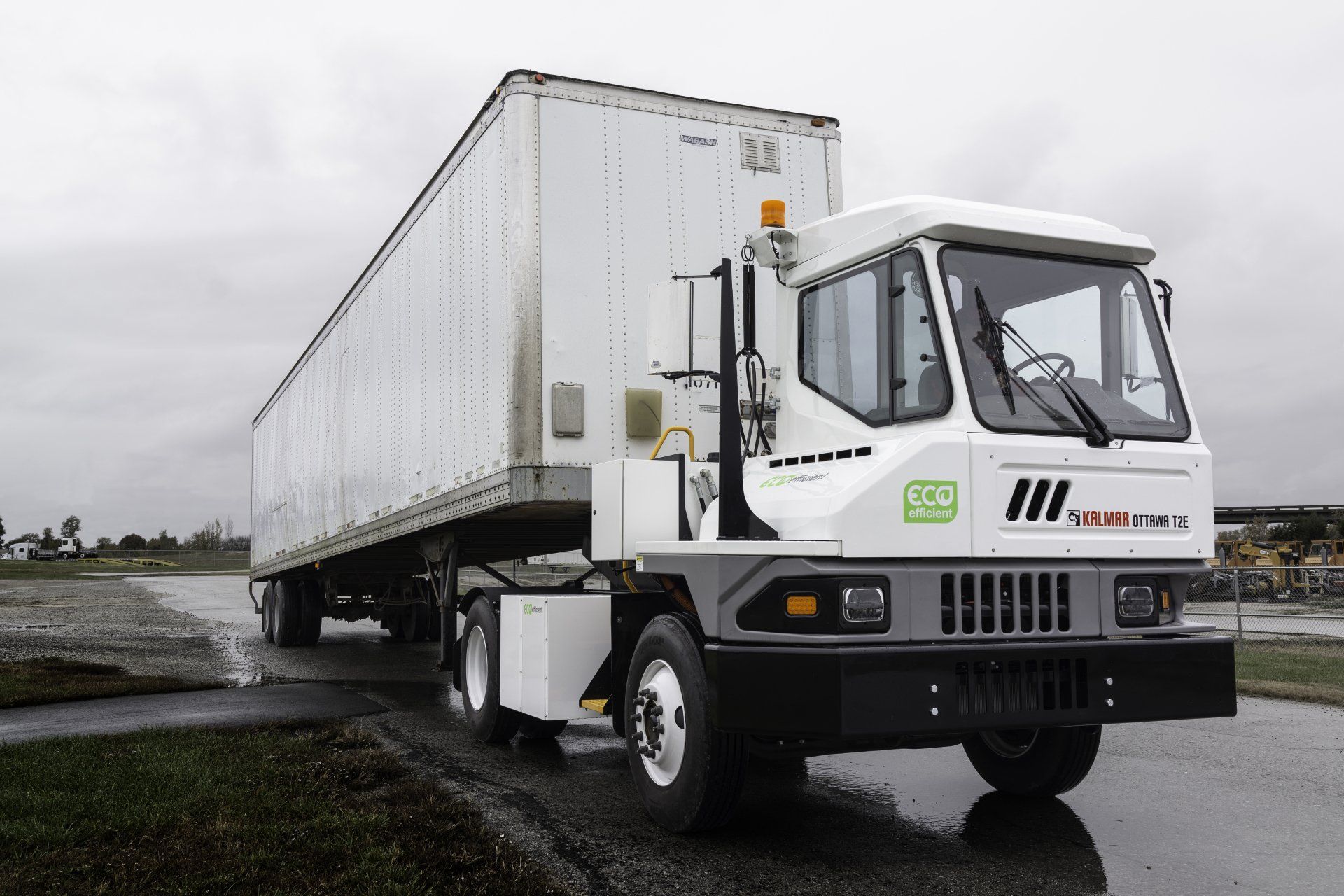

T2E 4x2 Electric Terminal Tractor

The new electric terminal tractor produces less noise, vibrations, fumes and emissions making it safer and healthier for your driver to operate and ideal for use indoors and out. This is a revolution you can’t afford to miss.

T2 4x2 DOT/EPA Terminal Tractor

The T2 4X2 DOT/EPA terminal tractor is designed to efficiently move trailers from yard to yard, even if that means crossing public streets or highways.

FEATURES:

Wheelbase:
116”
Frame / Chassis:
14”x4.25”x3.5” Steel 50,000 PSI 3/8” Formed C-Channel
Engine:
Cummins B6.7-200 HP with OBD, Clean Idle Certified @ 2300 RPM, 520 lb./ft. Torque @ 1600RPM
Transmission:
Allison 3000RDS (6 Speed) Automatic Transmission with MaxiMizer Fuel Reduction System
Front Axle:
Meritor FF-961 12,000 lb. Rated
Rear Axle:
Meritor RS-24-160, 30,000 lb. Rated, 7.17:1 Ratio
Fifth Wheel:
Holland FW-35 Fifth Wheel with 70,000 lb. Plate Rating
Pneumatic:
18.7 CFM Wabco Compressor with (2) Reservoir Tanks, Total Capacity 4614 cu. in.

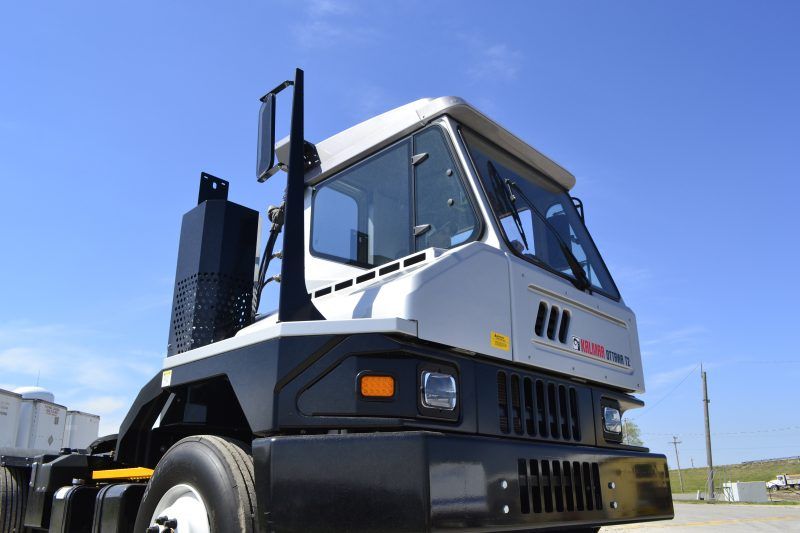

T2 6x4 DOT/EPA Terminal Tractor

The T2 6X4 DOT/EPA terminal tractor is designed to efficiently move trailers from yard to yard, even if that means crossing public streets or highways.

FEATURES:

Wheelbase:
146”
Frame / Chassis:
14”x4.25”x3.5” Steel 50,000 PSI 3/8” Formed C-Channel
Engine:
Cummins B6.7-200 HP with OBD, Clean Idle Certified @ 2300 RPM, 520 lb./ft. Torque @ 1600RPM
Transmission:
Allison 3000RDS (6 Speed) Automatic Transmission with MaxiMizer Fuel Reduction System
Front Axle:
Meritor FF-961 12,000 lb. Rated
Rear Axle:
Meritor MT-40-14X, 40,000 lb. Rated, 7.17:1 Ratio
Fifth Wheel: Holland FW-35 Fifth Wheel with 70,000 lb. Plate Rating
Pneumatic:
18.7 CFM Wabco Compressor with (3) Reservoir Tanks, Total Capacity 5444 cu. in.
