Battery Electric
Zero Emissions Equipment
Electric Zero Emissions High Capacity Lift Trucks
Taylor Machine Works was built on the premise, "We engineer and build what you need." This is just as true today as it was in 1927. Taylor Big Red designs, engineers and manufactures American made industrial forklifts and material handling equipment for a number of industries including: Steel, Aluminum, Wood, Lumber, Concrete, Precast, Breakbulk, Intermodal, Ports, Rail and Stevedoring.

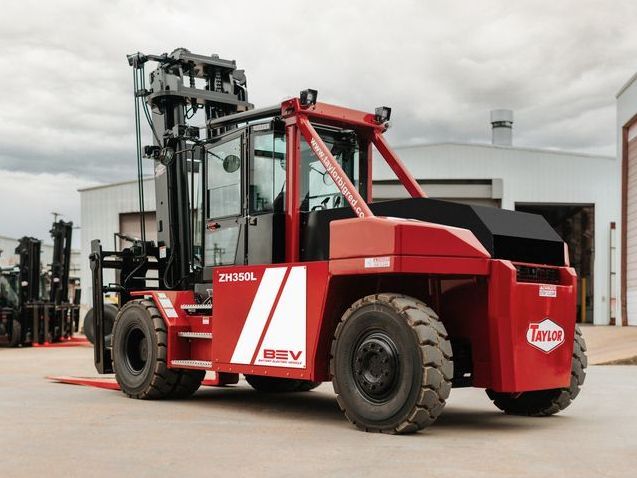

ZH-350L
Capacity: 35,000 lbs.
Load Center: 48-in.
Wheelbase: 148.0-in.
Engine: Battery Electric
The XH-350L is capable of handling long duty cycles with a lift capacity of 35,000lbs. Taylor 48-in Load Center Pneumatic Tire forklifts are engineered to meet the needs of the following industries: Steel, Aluminum, Wood, Lumber, Concrete, Precast, Breakbulk, Intermodal, Ports, Rail and Stevedoring.
-
FEATURES:
QUICK SPECS:
- ENGINE: ELECTRIC PMSM TRACTION
- DRIVE AXLE: DANA E-AXLE
- STEER AXLE: HD-300
- BRAKES: REGENERATIVE
- MAST: 11' UV
- CARRIAGE: C-100 SS/FP
- FORKS: 4X8X96
STANDARD FEATURES
- 11' ULTRA-VU 2-Stage Mast (152-in lowered height)
- 100-in Pin-type ";C"; Carriage with individual fork positioning & side shift
- 4-in X 8-in X 96-in pin-mounted Forks
- Permanent Magnet Synchronous Motor
- 90+/- minutes charging time
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Dana E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor HD-300 welded steel Steer Axle (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 12.00 X 20 - 24PR bias pneumatic drive and steer tires (high load)
CHASSIS
- All-welded steel frame with four lifting eyes (lifting eyes not designed for level pick)
- Replaceable bolt-on steps and handrails
- A-pillar design with overhead tilt cylinders provides enhanced structural rigidity for the chassis and mast.
CAB
- Enclosed 2-door steel all-welded DREAM Cab (includes dome light, wide angle mirrors, door hold-back latches with trip handles, handrails, black floor mats, and is isolation mounted for noise and vibration reduction)
- Cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat
- Multifunction Joystick mounted on adjustable armrest with integrated directional shift control
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- TaylorTrak Pro Advanced Fleet Telematics hardware
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with a tilting steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt electrical system
- Dual heavy-duty lead-acid batteries (for system startup)
- Battery disconnect/lock-out switch
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights (A-pillar mounted)
- (2) LED work lights (mast mounted)
- Circuit breakers with heavy-duty connectors (no automotive-type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Dual electric trumpet horns (116 dBA)
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video

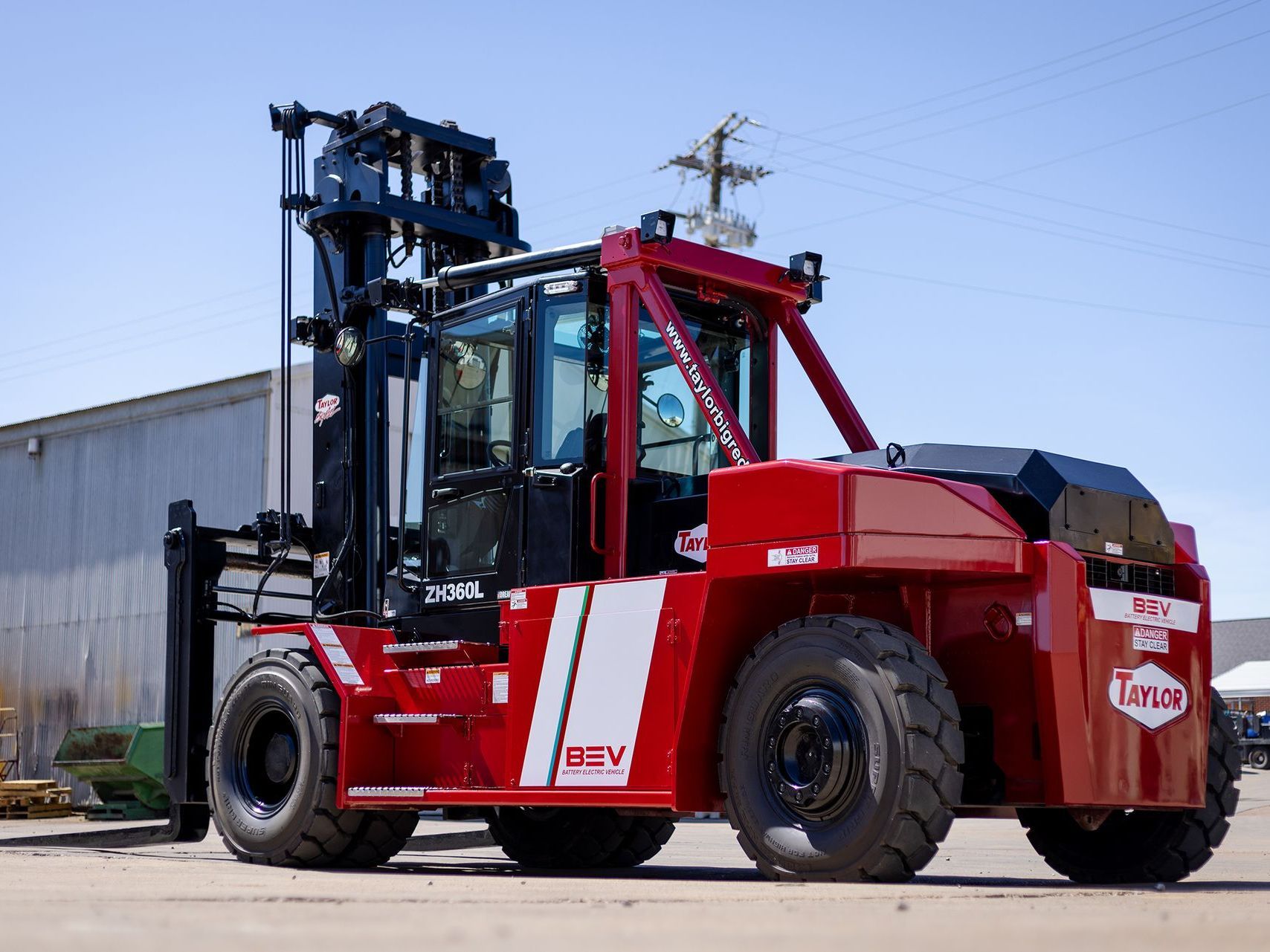

ZH-360L
Capacity: 36,000-lbs
Load Center: 48-in.
Wheelbase: 148.0-in.
Engine: Battery Electric
The ZH-360L is capable of handling long duty cycles with a lift capacity of 36,000lbs. Taylor 48-in Load Center Pneumatic Tire forklifts are engineered to meet the needs of the following industries: Steel, Aluminum, Wood, Lumber, Concrete, Precast, Breakbulk, Intermodal, Ports, Rail and Stevedoring.
-
FEATURES:
QUICK SPECS:
- ENGINE: ELECTRIC PMSM TRACTION
- DRIVE AXLE: DANA E-AXLE
- STEER AXLE: HD-300
- BRAKES: REGENERATIVE
- MAST: 11' UV
- CARRIAGE: C-100 SS/FP
- FORKS: 4X8X96
STANDARD FEATURES
- 11' ULTRA-VU 2-Stage Mast (152-in lowered height)
- 100-in Pin-type ";C"; Carriage with individual fork positioning & side shift
- 4-in X 8-in X 96-in pin-mounted Forks
- Permanent Magnet Synchronous Motor
- 90+/- minutes charging time
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Dana E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor HD-300 welded steel Steer Axle (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 12.00 X 20 - 24PR bias pneumatic drive and steer tires (high load)
CHASSIS
- All-welded steel frame with four lifting eyes (lifting eyes not designed for level pick)
- Replaceable bolt-on steps and handrails
- A-pillar design with overhead tilt cylinders provides enhanced structural rigidity for the chassis and mast.
CAB
- Enclosed 2-door steel all-welded DREAM Cab (includes dome light, wide angle mirrors, door hold-back latches with trip handles, handrails, black floor mats, and is isolation mounted for noise and vibration reduction)
- Cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat
- Multifunction Joystick mounted on adjustable armrest with integrated directional shift control
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- TaylorTrak Pro Advanced Fleet Telematics hardware
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with a tilting steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt electrical system
- Dual heavy-duty lead-acid batteries (for system startup)
- Battery disconnect/lock-out switch
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights (A-pillar mounted)
- (2) LED work lights (mast mounted)
- Circuit breakers with heavy-duty connectors (no automotive-type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Dual electric trumpet horns (116 dBA)
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video

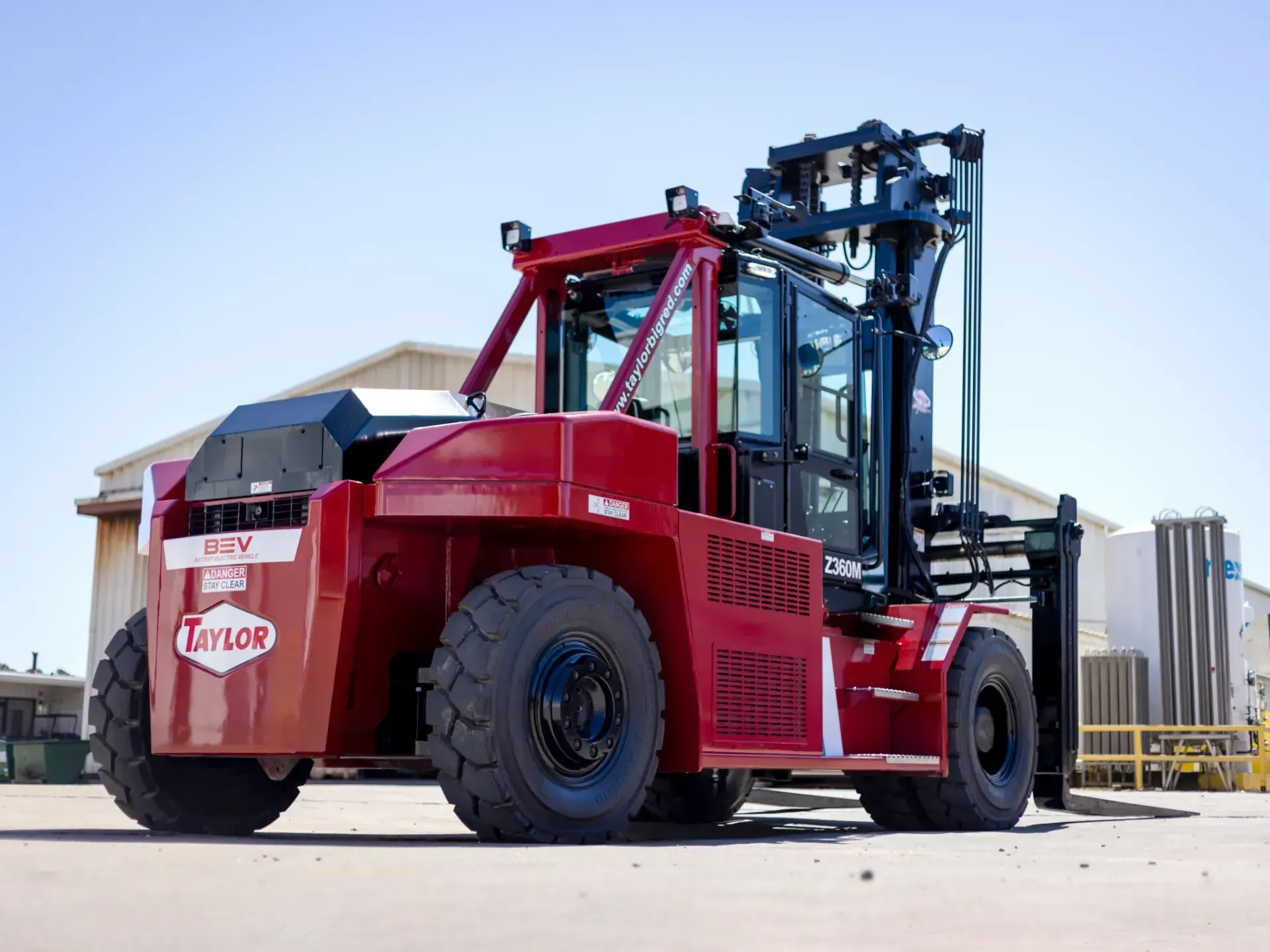

Z-360M
Capacity: 36,000 lbs.
Load Center: 24-in.
Wheelbase: 121-in.
Engine: Battery Electric
The Z-360M is capable of handling long duty cycles with a lift capacity of 36,000lbs. Taylor 24-in Load Center Pneumatic Tire forklifts are engineered to meet the needs of the following industries: Steel, Aluminum, Wood, Lumber, Concrete, Precast, Breakbulk, Intermodal, Ports, Rail and Stevedoring.
-
FEATURES:
QUICK SPECS:
- CAPACITY: 36K LBS / 16K KG
- LOAD CENTER: 24 IN / 610 MM
- WHEELBASE: 121.0 IN / 3073 MM
- MAST: 11' UV
- CARRIAGE: 84-IN PIN-TYPE C CARRIAGE
- FORKS: 3.5X8X48 IN
- BRAKES: REGENERATIVE
- VOLTS: 24
- TIRES: 12.00 X 20 - 24PR
STANDARD FEATURES
- 11' ULTRA-VU 2-Stage Mast (143-in lowered height)
- 84-in Pin-type C Carriage with individual fork positioning & side shift
- 4-in X 8-in X 96-in pin-mounted Forks
- Permanent Magnet Synchronous Motor
- 90+/- minutes charging time
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Dana E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor HD-300 welded steel Steer Axle (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 12.00 X 20 - 24PR bias pneumatic drive and steer tires (high load)
CHASSIS
- All-welded steel frame with four lifting eyes (lifting eyes not designed for level pick)
- Replaceable bolt-on steps and handrails
- A-pillar design with overhead tilt cylinders provides enhanced structural rigidity for the chassis and mast.
CAB
- Enclosed 2-door steel all-welded DREAM Cab (includes dome light, wide angle mirrors, door hold-back latches with trip handles, handrails, black floor mats, and is isolation mounted for noise and vibration reduction)
- Cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat
- Multifunction Joystick mounted on adjustable armrest with integrated directional shift control
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- TaylorTrak Pro Advanced Fleet Telematics hardware
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with a tilting steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt electrical system
- Dual heavy-duty lead-acid batteries (for system startup)
- Battery disconnect/lock-out switch
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights (A-pillar mounted)
- (2) LED work lights (mast mounted)
- Circuit breakers with heavy-duty connectors (no automotive-type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Dual electric trumpet horns (116 dBA)
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video

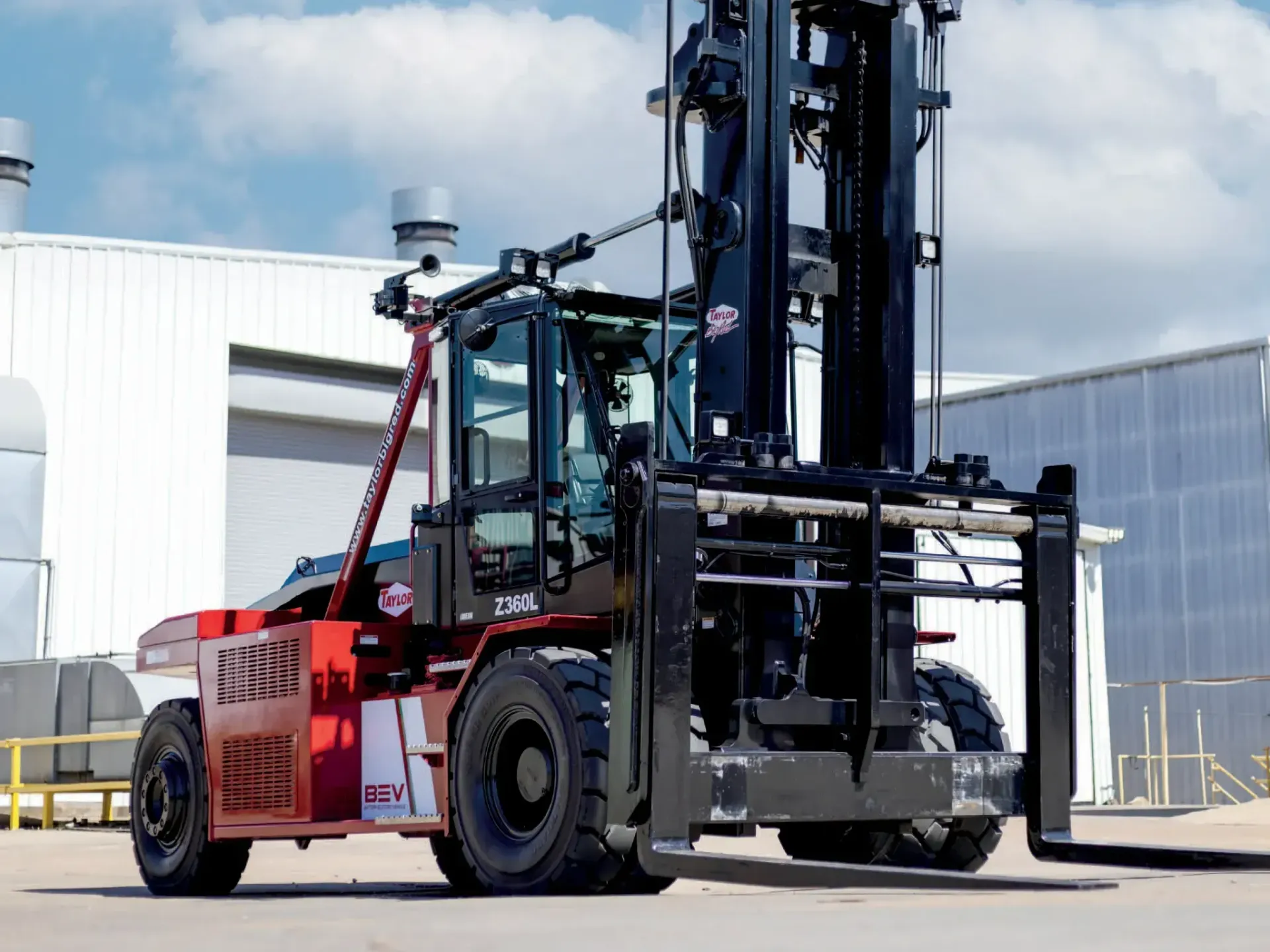

Z-360L
Capacity: 36,000 lbs.
Load Center: 24-in.
Wheelbase: 138-in.
Engine: Battery Electric
The Z-360L is capable of handling long duty cycles with a lift capacity of 36,000lbs. Taylor 24-in Load Center Pneumatic Tire forklifts are engineered to meet the needs of the following industries: Steel, Aluminum, Wood, Lumber, Concrete, Precast, Breakbulk, Intermodal, Ports, Rail and Stevedoring.
-
FEATURES:
QUICK SPECS:
- CAPACITY: 36K LBS / 16K KG
- LOAD CENTER: 24 IN / 610 MM
- WHEELBASE: 138.0 IN / 3505 MM
- MAST: 11' UV
- CARRIAGE: 84-IN PIN-TYPE C CARRIAGE
- FORKS: 3.5X8X48 IN
- BRAKES: REGENERATIVE
- VOLTS: 24
- TIRES: 12.00 X 20 - 24PR
STANDARD FEATURES
- 11' ULTRA-VU 2-Stage Mast (143-in lowered height)
- 84-in Pin-type C Carriage with individual fork positioning & side shift
- 4-in X 8-in X 96-in pin-mounted Forks
- Permanent Magnet Synchronous Motor
- 90+/- minutes charging time
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Dana E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor HD-300 welded steel Steer Axle (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 12.00 X 20 - 24PR bias pneumatic drive and steer tires (high load)
CHASSIS
- All-welded steel frame with four lifting eyes (lifting eyes not designed for level pick)
- Replaceable bolt-on steps and handrails
- A-pillar design with overhead tilt cylinders provides enhanced structural rigidity for the chassis and mast.
CAB
- Enclosed 2-door steel all-welded DREAM Cab (includes dome light, wide angle mirrors, door hold-back latches with trip handles, handrails, black floor mats, and is isolation mounted for noise and vibration reduction)
- Cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat
- Multifunction Joystick mounted on adjustable armrest with integrated directional shift control
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- TaylorTrak Pro Advanced Fleet Telematics hardware
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with a tilting steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt electrical system
- Dual heavy-duty lead-acid batteries (for system startup)
- Battery disconnect/lock-out switch
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights (A-pillar mounted)
- (2) LED work lights (mast mounted)
- Circuit breakers with heavy-duty connectors (no automotive-type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Dual electric trumpet horns (116 dBA)
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video

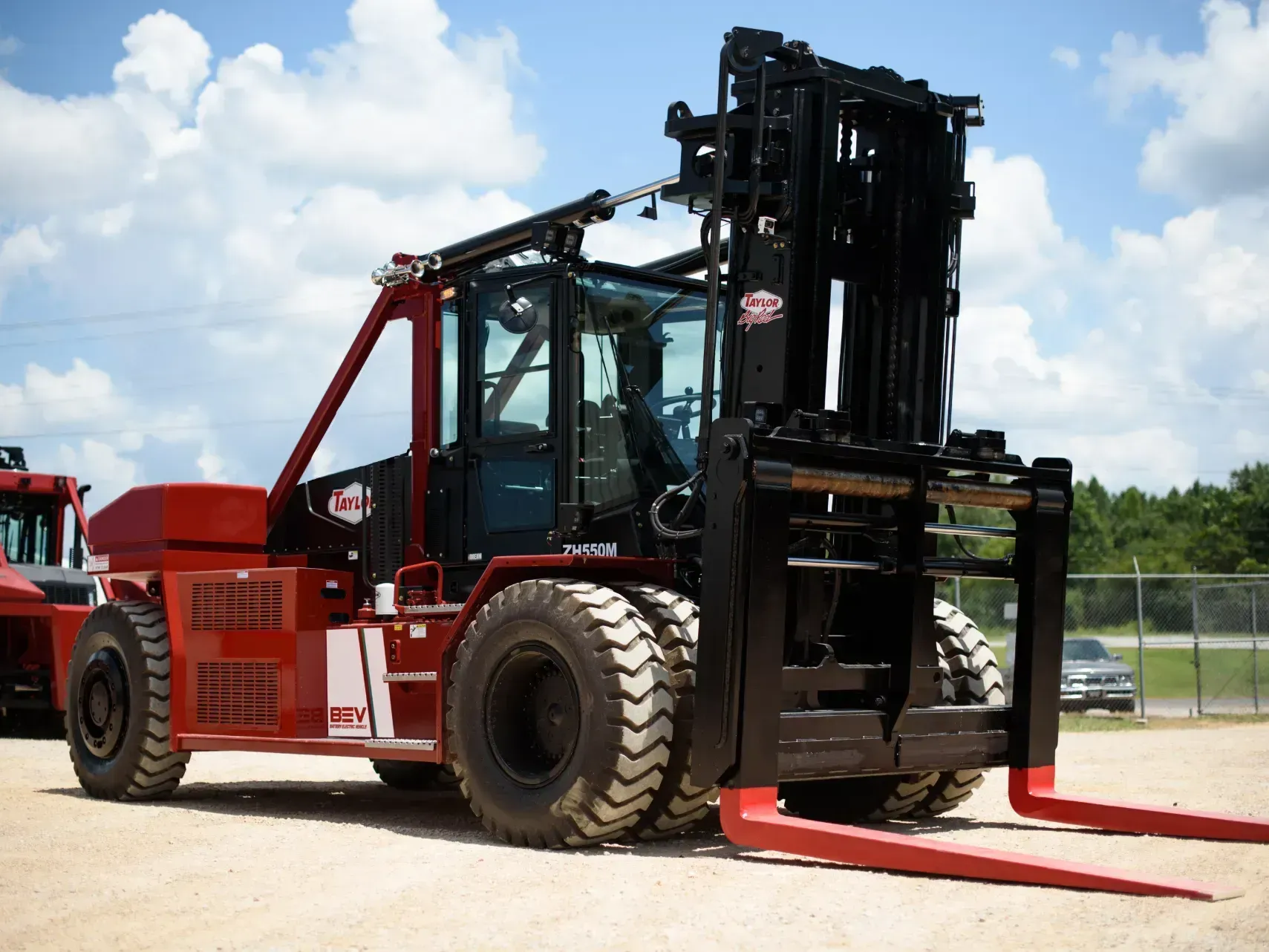

ZH-550M
Capacity: 55,000 lbs.
Load Center: 48-in.
Wheelbase: 170-in.
Engine: Battery Electric
The ZH-550M is capable of handling long duty cycles with a lift capacity of 55,000lbs. Taylor 48-in Load Center Pneumatic Tire forklifts are engineered to meet the needs of the following industries: Steel, Aluminum, Wood, Lumber, Concrete, Precast, Breakbulk, Intermodal, Ports, Rail and Stevedoring.
-
FEATURES:
QUICK SPECS:
- CAPACITY: 55K LBS / 25K KG
- LOAD CENTER: 48 IN / 1219 MM
- WHEELBASE: 170.0 IN / 4318 MM
- MAST: 11' UV
- CARRIAGE: C-100 SS/FP
- FORKS: 5X9X96 IN
- BRAKES: REGENERATIVE
- VOLTS: 24
- TIRES: 14 X 25 - 20PR
STANDARD FEATURES
- 11' ULTRA-VU 2-Stage Mast (155-in lowered height)
- 100-in Pin-type ";C"; Carriage with individual fork positioning & side shift
- 5-in X 10-in X 96-in pin mounted Forks
- Permanent Magnet Synchronous Motor
- 100+/- minutes charging time
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Dana E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor HD-450 welded steel Steer Axle (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 14 X 25 - 20PR bias pneumatic drive and steer tires (high load)
CHASSIS
- All-welded steel frame with four lifting eyes (lifting eyes not designed for level pick)
- Replaceable bolt-on steps and handrails
- A-pillar design with overhead tilt cylinders provides enhanced structural rigidity for the chassis and mast.
CAB
- Enclosed 2-door steel all-welded DREAM Cab (includes dome light, wide angle mirrors, door hold-back latches with trip handles, handrails, black floor mats, and is isolation mounted for noise and vibration reduction)
- Cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat
- Multifunction Joystick mounted on adjustable armrest with integrated directional shift control
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- TaylorTrak Pro Advanced Fleet Telematics hardware
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with a tilting steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt electrical system
- Dual heavy-duty lead-acid batteries (for system startup)
- Battery disconnect/lock-out switch
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights (A-pillar mounted)
- (2) LED work lights (mast mounted)
- Circuit breakers with heavy-duty connectors (no automotive-type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Dual electric trumpet horns (116 dBA)
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video

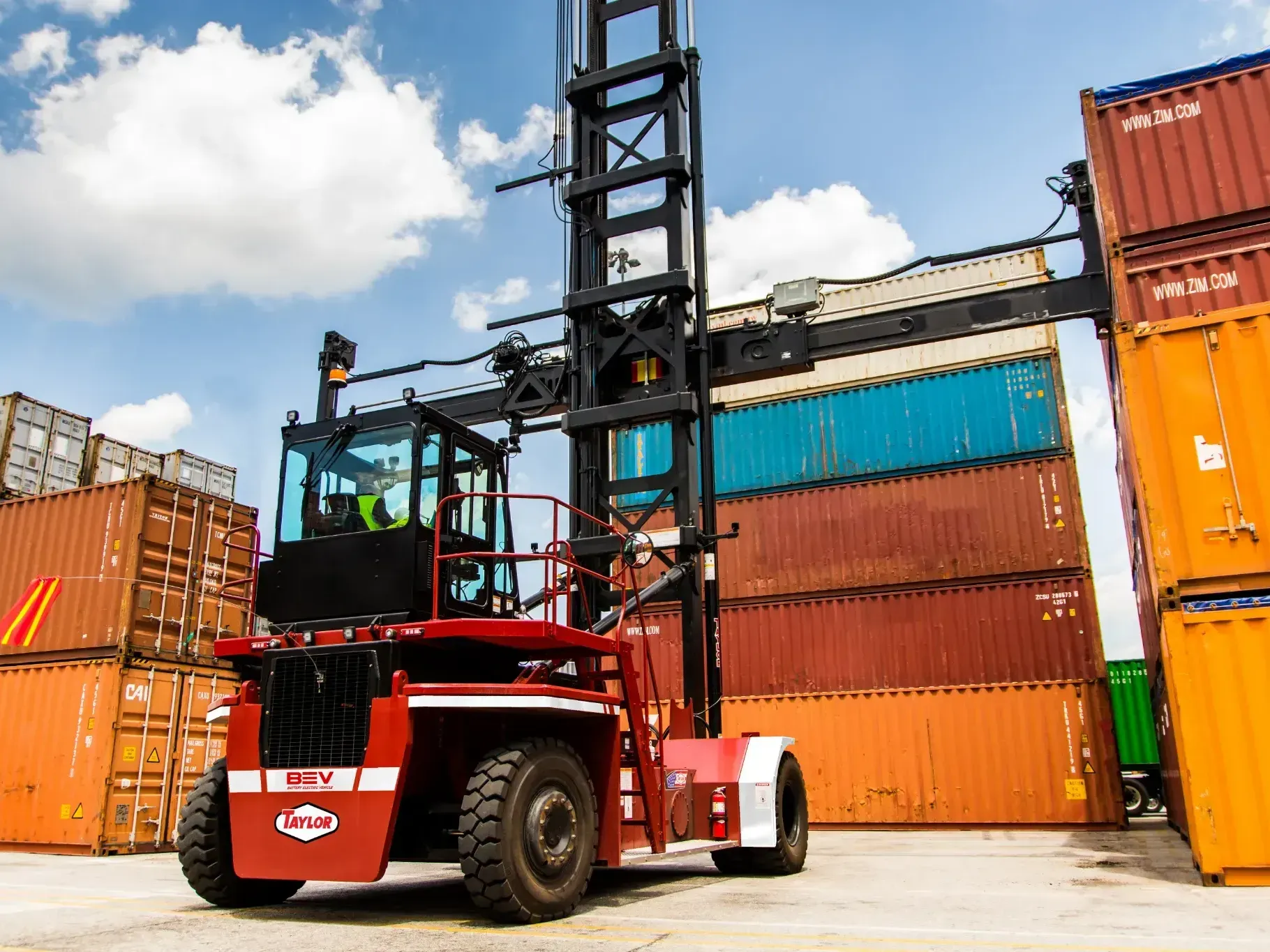

ZEC-205/6
Capacity: 20,000 lbs.
Load Center: 103-in.
Wheelbase: 180-in.
Engine: Battery Electric
The ZEC-205/6 is capable of handling long duty cycles with a lift capacity of 20,000lbs. Taylor 103-in Load Center Pneumatic Tire forklifts are engineered to meet the needs of the following industries: Breakbulk, Intermodal, and Ports.
-
FEATURES:
QUICK SPECS:
- CAPACITY: 20K LBS / 9K KG
- LOAD CENTER: 103 IN / 2616 MM
- WHEELBASE: 180.0 IN / 4572 MM
- MAST: 45' UV
- CARRIAGE: 20-40 ISO
- BRAKES: REGENERATIVE
- TIRES: 14 X 24 - 40PR
STANDARD FEATURES
- 45' ULTRA-VIEW Telescopic Mast for stacking 5-High (9' 6" Empty) & 6-High (8' 6" Empty)
- Side Pick 20-40 ISO Container Handling Attachment, Integrated into the Side Shift Carriage (24" in each direction). Features guide arms, mechanical pile slope & twist-lock safety interlock system.
- Permanent Magnet Synchronous Motor
- 90+/- minutes charging time with standard battery configuration
- 180+/- minutes charging time with extended range battery configuration
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Kessler E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor 310 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 14.00 X 24 - 20PR bias pneumatic drive and steer tires
CHASSIS
- All-welded steel frame with 4 Lifting Eyes (lifting eyes not designed for level pick)
- Bolted counterweight
- Replaceable bolt-on steps and handrails
- Removable deck plates open to expose the drive train for ease of maintenance.
CAB
- Enclosed, elevated operator, 2-door all-welded steel center mount cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails, black floor mats and is isolation mounted for noise and vibration reduction)
- Operator cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat with 35 deg. of rotation (15-20 deg. left-right)
- Multifunction joystick mounted on adjustable armrest
- Roll shift directional control (column mounted)
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt electrical system with 95 amp alternator
- Dual heavy-duty batteries
- Battery disconnect/lock-out switch
- 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in the cab and on container attachment)
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights (cab mounted)
- (2) LED work lights (mast mounted)
- (2) LED work lights (twist-lock mounted)
- (2) LED step lights
- Circuit breakers with heavy-duty connectors (no automotive-type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Electric trumpet horn
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video
ZEC-206/7
Capacity: 20,000 lbs.
Load Center: 103-in.
Wheelbase: 180-in.
Engine: Battery Electric
The ZEC-206/7 is capable of handling long duty cycles with a lift capacity of 20,000lbs. Taylor 103-in Load Center Pneumatic Tire forklifts are engineered to meet the needs of the following industries: Breakbulk, Intermodal, and Ports.
-
FEATURES:
QUICK SPECS:
- CAPACITY: 20K LBS / 9K KG
- LOAD CENTER: 103 IN / 2616 MM
- WHEELBASE: 180.0 IN / 4572 MM
- MAST: 54'6" UV
- CARRIAGE: 20-40 ISO
- BRAKES: REGENERATIVE
- TIRES: 14 X 24 - 40PR
STANDARD FEATURES
- 54' 6" ULTRA-VIEW Telescopic Mast for stacking 6-High (9' 6" Empty) & 7-High (8' 6" Empty)
- Side Pick 20-40 ISO Container Handling Attachment, Integrated into the Side Shift Carriage(24" in each direction). Features guide arms, mechanical pile slope & twist-lock safety interlock system.
- Permanent Magnet Synchronous Motor
- 90+/- minutes charging time with standard battery configuration
- 180+/- minutes charging time with extended range battery configuration
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Kessler E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor 310 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 14.00 X 24 - 20PR bias pneumatic drive and steer tires
CHASSIS
- All-welded steel frame with 4 Lifting Eyes (lifting eyes not designed for level pick)
- Bolted counterweight
- Replaceable bolt-on steps and handrails
- Removable deck plates open to expose the drive train for ease of maintenance.
CAB
- Enclosed, elevated operator, 2-door all-welded steel center mount cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails, black floor mats and is isolation mounted for noise and vibration reduction)
- Operator cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat with 35 deg. of rotation (15-20 deg. left-right)
- Multifunction joystick mounted on adjustable armrest
- Roll shift directional control (column mounted)
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt electrical system with 95 amp alternator
- Dual heavy-duty batteries
- Battery disconnect/lock-out switch
- 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in the cab and on container attachment)
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights (cab mounted)
- (2) LED work lights (mast mounted)
- (2) LED work lights (twist-lock mounted)
- (2) LED step lights
- Circuit breakers with heavy-duty connectors (no automotive-type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Electric trumpet horn
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video
ZEC-207/8
Capacity: 20,000 lbs.
Load Center: 103-in.
Wheelbase: 180-in.
Engine: Battery Electric
The ZEC-207/8 is capable of handling long duty cycles with a lift capacity of 20,000lbs. Taylor 103-in Load Center Pneumatic Tire forklifts are engineered to meet the needs of the following industries: Breakbulk, Intermodal, and Ports.
-
FEATURES:
QUICK SPECS:
- CAPACITY: 20K LBS / 9K KG
- LOAD CENTER: 103 IN / 2616 MM
- WHEELBASE: 180.0 IN / 4572 MM
- MAST: 63' UV
- CARRIAGE: 20-40 ISO
- BRAKES: REGENERATIVE
- TIRES: 14 X 24 - 40PR
STANDARD FEATURES
- 63' ULTRA-VIEW Telescopic Mast for stacking 6-High (9' 6" Empty) & 7-High (8' 6" Empty)
- Side Pick 20-40 ISO Container Handling Attachment, Integrated into the Side Shift Carriage(24" in each direction). Features guide arms, mechanical pile slope & twist-lock safety interlock system.
- Permanent Magnet Synchronous Motor
- 90+/- minutes charging time with standard battery configuration
- 180+/- minutes charging time with extended range battery configuration
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Kessler E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor 310 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 14.00 X 24 - 20PR bias pneumatic drive and steer tires
CHASSIS
- All-welded steel frame with 4 Lifting Eyes (lifting eyes not designed for level pick)
- Bolted counterweight
- Replaceable bolt-on steps and handrails
- Removable deck plates open to expose the drive train for ease of maintenance.
CAB
- Enclosed, elevated operator, 2-door all-welded steel center mount cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails, black floor mats and is isolation mounted for noise and vibration reduction)
- Operator cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat with 35 deg. of rotation (15-20 deg. left-right)
- Multifunction joystick mounted on adjustable armrest
- Roll shift directional control (column mounted)
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt electrical system with 95 amp alternator
- Dual heavy-duty batteries
- Battery disconnect/lock-out switch
- 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in the cab and on container attachment)
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights (cab mounted)
- (2) LED work lights (mast mounted)
- (2) LED work lights (twist-lock mounted)
- (2) LED step lights
- Circuit breakers with heavy-duty connectors (no automotive-type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Electric trumpet horn
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video

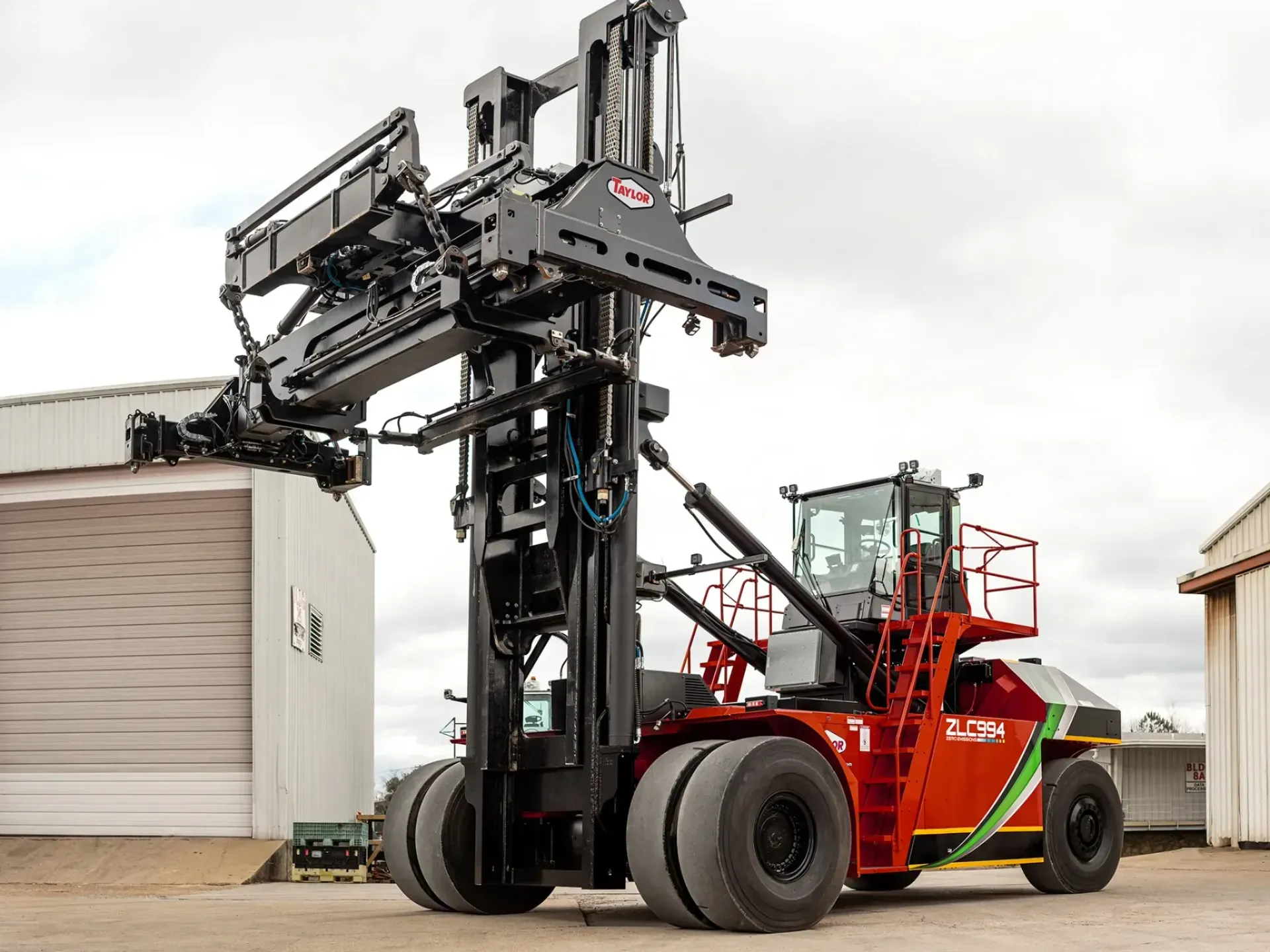

ZLC-994
Capacity: 90,000 lbs.
Load Center: 97-in.
Wheelbase: 236-in.
Engine: Battery Electric
The Taylor ZLC-994 Battery Electric Loaded Container Handler is designed to handle Loaded Containers stacked up to 4-High. This truck features a Heavy-Duty Taylor designed Top-pick 4-point spreader, 236-in. wheelbase, and end-user diagnostics. Common applications include, but not limited to, Port Operations, Stevedoring & Container Yards, Intermodal.
-
FEATURES:
QUICK SPECS:
- CAPACITY: 90K LBS / 41K KG
- LOAD CENTER: 97 IN / 2464 MM
- WHEELBASE: 236.0 IN / 5994 MM
- MAST: 31.5' UV
- CARRIAGE: 20-40 ISO
- BRAKES: REGENERATIVE
- TIRES: 18.00 X 25 - 40PR BIAS PNEUMATIC DRIVE & STEER TIRES
STANDARD FEATURES
- 51' 6" ULTRA-VIEW Telescopic Mast for stacking 6-High (9' 6" Loaded)
- 20-40 ISO Container Handling Attachment, Chain Suspended, with reach, slew, side shift, guide arms, and mechanical pile slope
- Accumulator in Lift Circuit
- 650V All-electric battery power drivetrain. Two-full shift run time (under normal work cycles)
- 5 Hour Charge Time (with 180kW charger)
- Dana Dual Hub Drive E-Axle
- Taylor 600 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 18.00 X 25 - 40PR bias pneumatic drive and steer tires
CHASSIS
- All-welded steel frame
- Replaceable bolt-on steps and handrails
- Deck plates expose the drive train and hydraulics for ease of maintenance.
CAB
- Enclosed, elevated operator, 2-door all-welded steel center mount cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails, black floor mats and is isolation mounted for noise and vibration reduction)
- Operator cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat with 35 deg. of rotation (15-20 deg. left-right)
- Multifunction joystick mounted on adjustable armrest
- Roll shift directional control (column mounted)
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt low voltage electrical system. Dual heavy-duty batteries
- 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in the cab and on container attachment)
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights ("A" pillar mounted)
- (2) LED work lights (mast mounted)
- (2) LED work lights (twist-lock mounted)
- (2) LED step lights
- Breaker reset switches
- Air Horn with 2-gal air tank (126 dBA)
- Key switch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video
ZLC-995
Capacity: 90,000 lbs.
Load Center: 97-in.
Wheelbase: 236-in.
Engine: Battery Electric
The Taylor ZLC-995 Battery Electric Loaded Container Handler is designed to handle Loaded Containers stacked up to 5-High. This truck features a Heavy-Duty Taylor designed Top-pick 4-point spreader, 236-in. wheelbase, and end-user diagnostics. Common applications include, but not limited to, Port Operations, Stevedoring & Container Yards, Intermodal.
-
FEATURES:
QUICK SPECS:
- CAPACITY: 90K LBS / 41K KG
- LOAD CENTER: 97 IN / 2464 MM
- WHEELBASE: 236.0 IN / 5994 MM
- MAST: 42' UV
- CARRIAGE: 20-40 ISO
- BRAKES: REGENERATIVE
- TIRES: 18.00 X 25 - 40PR BIAS PNEUMATIC DRIVE & STEER TIRES
STANDARD FEATURES
- 51' 6" ULTRA-VIEW Telescopic Mast for stacking 6-High (9' 6" Loaded)
- 20-40 ISO Container Handling Attachment, Chain Suspended, with reach, slew, side shift, guide arms, and mechanical pile slope
- Accumulator in Lift Circuit
- 650V All-electric battery power drivetrain. Two-full shift run time (under normal work cycles)
- 5 Hour Charge Time (with 180kW charger)
- Dana Dual Hub Drive E-Axle
- Taylor 600 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 18.00 X 25 - 40PR bias pneumatic drive and steer tires
CHASSIS
- All-welded steel frame
- Replaceable bolt-on steps and handrails
- Deck plates expose the drive train and hydraulics for ease of maintenance.
CAB
- Enclosed, elevated operator, 2-door all-welded steel center mount cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails, black floor mats and is isolation mounted for noise and vibration reduction)
- Operator cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat with 35 deg. of rotation (15-20 deg. left-right)
- Multifunction joystick mounted on adjustable armrest
- Roll shift directional control (column mounted)
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt low voltage electrical system. Dual heavy-duty batteries
- 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in the cab and on container attachment)
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights ("A" pillar mounted)
- (2) LED work lights (mast mounted)
- (2) LED work lights (twist-lock mounted)
- (2) LED step lights
- Breaker reset switches
- Air Horn with 2-gal air tank (126 dBA)
- Key switch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video

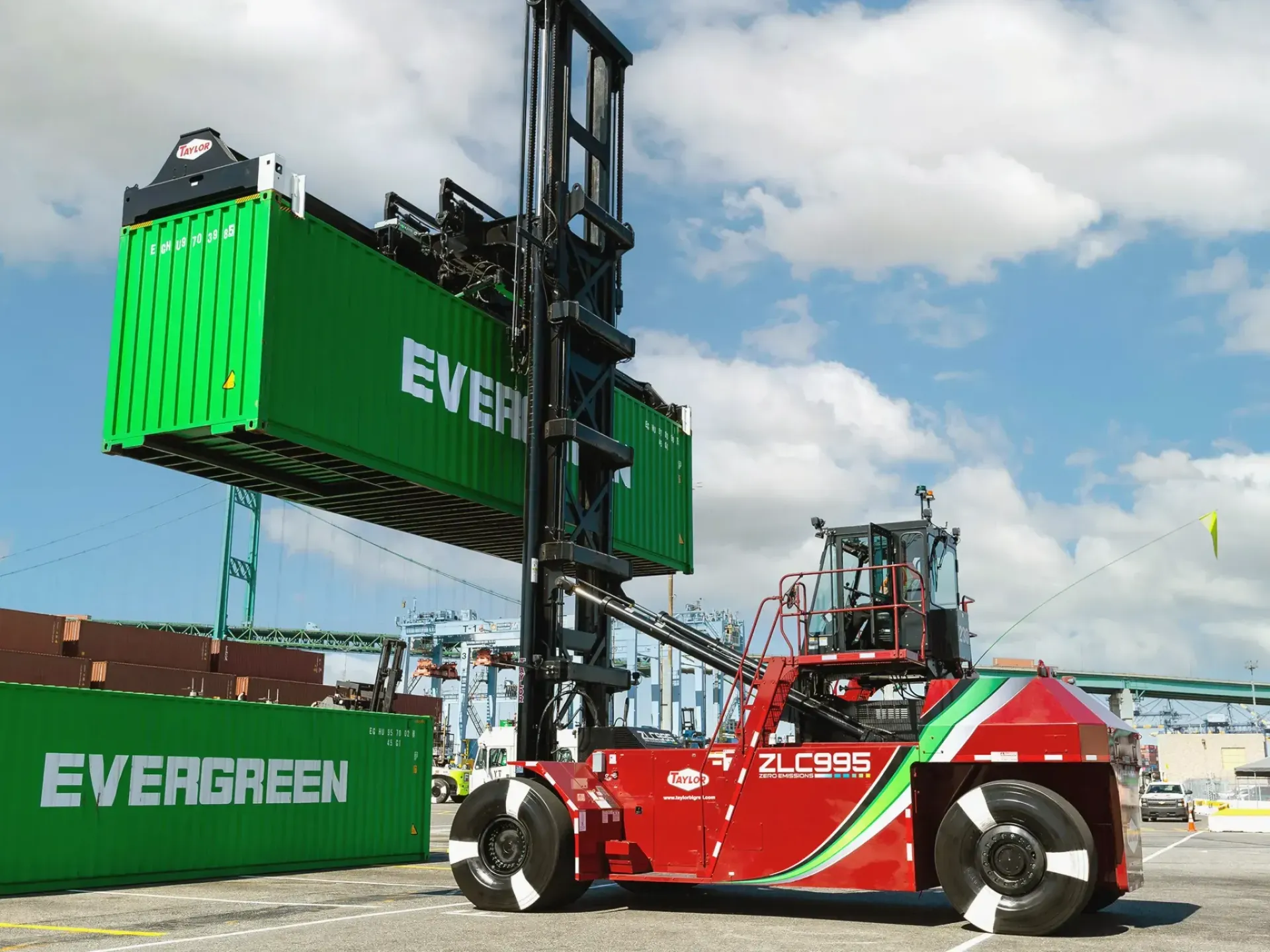

ZLC-995
Capacity: 90,000 lbs.
Load Center: 97-in.
Wheelbase: 236-in.
Engine: Battery Electric
The Taylor ZLC-996 Battery Electric Loaded Container Handler is designed to handle Loaded Containers stacked up to 6-High. This truck features a Heavy-Duty Taylor designed Top-pick 4-point spreader, 236-in. wheelbase, and end-user diagnostics. Common applications include, but not limited to, Port Operations, Stevedoring & Container Yards, Intermodal.
-
FEATURES:
QUICK SPECS:
- CAPACITY: 90K LBS / 41K KG
- LOAD CENTER: 97 IN / 2464 MM
- WHEELBASE: 236.0 IN / 5994 MM
- MAST: 51.5' UV
- CARRIAGE: 20-40 ISO
- BRAKES: REGENERATIVE
- TIRES: 18.00 X 25 - 40PR BIAS PNEUMATIC DRIVE & STEER TIRES
STANDARD FEATURES
- 51' 6" ULTRA-VIEW Telescopic Mast for stacking 6-High (9' 6" Loaded)
- 20-40 ISO Container Handling Attachment, Chain Suspended, with reach, slew, side shift, guide arms, and mechanical pile slope
- Accumulator in Lift Circuit
- 650V All-electric battery power drivetrain. Two-full shift run time (under normal work cycles)
- 5 Hour Charge Time (with 180kW charger)
- Dana Dual Hub Drive E-Axle
- Taylor 600 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 18.00 X 25 - 40PR bias pneumatic drive and steer tires
CHASSIS
- All-welded steel frame
- Replaceable bolt-on steps and handrails
- Deck plates expose the drive train and hydraulics for ease of maintenance.
CAB
- Enclosed, elevated operator, 2-door all-welded steel center mount cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails, black floor mats and is isolation mounted for noise and vibration reduction)
- Operator cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat with 35 deg. of rotation (15-20 deg. left-right)
- Multifunction joystick mounted on adjustable armrest
- Roll shift directional control (column mounted)
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt low voltage electrical system. Dual heavy-duty batteries
- 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in the cab and on container attachment)
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights ("A" pillar mounted)
- (2) LED work lights (mast mounted)
- (2) LED work lights (twist-lock mounted)
- (2) LED step lights
- Breaker reset switches
- Air Horn with 2-gal air tank (126 dBA)
- Key switch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video

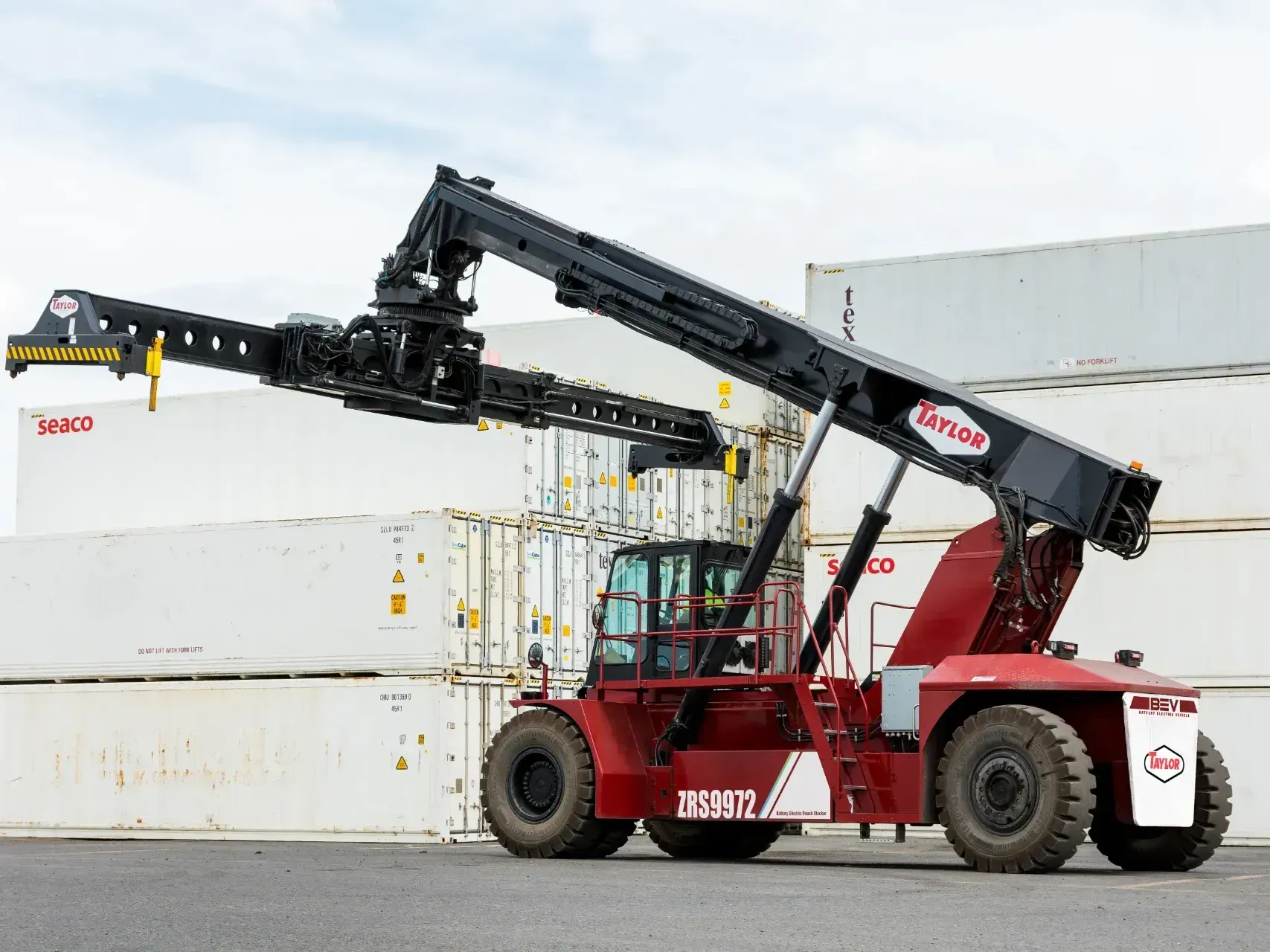

ZRS-9972
Capacity: 99,000 lbs.
Load Center: 97-in.
Wheelbase: 258-in.
Engine: Battery Electric
The Taylor ZRS-9972 Reachstacker is designed to handle Loaded Containers stacked up to 99,000-lbs / 5-High first row, 90,400-lbs / 4-High second row and 3-High third row. This truck features a Heavy Duty Taylor designed Top-pick 4-point spreader with up to 185 degree rotation, hydraulic cab positioning, and end-user diagnostics common applications include, but not limited to, Port Operations, Stevedoring & Container Yards, Intermodal.
-
FEATURES:
QUICK SPECS:
- CAPACITY:99K LBS / 45K KG
- LOAD CENTER: 97 IN / 2464 MM
- WHEELBASE:258.0 IN / 6553 MM
- MAST: TELESCOPIC BOOM
- CARRIAGE:20-40 ISO
- BRAKES: REGENERATIVE
- TIRES:18.00 X 25-40 PR E4
STANDARD FEATURES
- Telescopic Boom for stacking 5-High 1st row, 4-High 2nd row and 3-High 3rd row (9' 6" Loaded)
- 20-40 ISO Container Handling Attachment, with rotation, side shift, expansion/retraction, and damping
- 660V All-electric battery power drivetrain. Two-full shift run time (under normal work cycles)
- 5 hours full charging time with 180 kW external charging equipment
- E-axle with Energy Recovery Technology through regenerative braking
- Taylor 800 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
CHASSIS
- All-welded steel frame
- Replaceable bolt-on steps and handrails
- Deck plates expose the drivetrain and hydraulics for ease of maintenance.
CAB
- Climate Controlled sliding (hydraulic/electric) all-welded steel center mount cab (includes right-hand and left-hand access doors, with rear exit window and dome light)
- 66,000 BTU total heating with front and rear defrosting, cab pressurize, and fresh air intake
- 40,000 BTU air conditioning and two circulation fans
- Exterior Cab Positioning Switch allows the cab to be moved while the machine is powered down
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat with 35 deg. of rotation (15-20 deg. left-right)
- Multifunction joystick mounted on adjustable armrest
- Roll shift directional control (column mounted)
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5-minute default, password adjustable from 1-120 minutes by end-user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number-coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
ELECTRICAL (LOW VOLTAGE)
- 24-volt low voltage electrical system with 110 amp alternator
- Dual heavy-duty batteries
- Dual Battery disconnect/lock-out switch
- 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in the cab and on container attachment)
- (4) forward-facing LED work lights (cab mounted)
- (2) rear-facing LED work lights ("A" pillar mounted)
- (2) LED work lights (mast mounted)
- (2) LED work lights (twist-lock mounted)
- (2) LED step lights
- 24V Low Voltage System with heavy-duty connectors
- Breaker reset switches
- Air Horn with 2-gal air tank (126 dBA)
- Key switch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
VEHICLE INFORMATION PACKAGE
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video
Get in Touch
Thank you for contacting us.
We will get back to you as soon as possible
We will get back to you as soon as possible
Oops, there was an error sending your message.
Please try again later
Please try again later
City of Industry, CA
13027 Crossroads Parkway S.
City of Industry, CA 91746
Colton, CA
2026 West Valley Blvd.
Colton, CA 92324
Oakland, CA
1270 Ferry Street
Oakland, CA 94607
Mesa, AZ
4946 East Ingram Street
Mesa, AZ 85205
Las Vegas, NV
674 Corinthian Way,
North Las Vegas, NV 89030
